KAC-8105D
Class D Mono Power Amplifier
Copyright © 2011 Official Website of Anascomm Electronics
|   Home   |   Products  |    Dealers  |    Kenwood Singapore   |   Contact Us   |

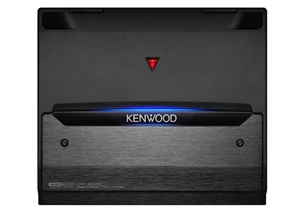

The KAC-8105D Class D Mono Power Amplifier has a small foot print and a mighty powerful
kick. Ready to pump out 1000 Watts Max Power, the KAC-8105D includes a built-in infrasonic
filter that helps subwoofers perform their best by sharply cutting off inaudible frequencies
below 15 or 25 Hz


General Features

  •        1000 Watts of Power with 30% Smaller Chassis Size
  •        CEA Rated: 300W (1.0% THD+N) (4Ohm/1Ch)
  •        CEA Rated: 500W (1.0% THD+N) (2Ohm/1Ch)
  •        High Quality Speaker Level Input and Blue Illumination
  •        Variable low-pass filter (50-200 Hz at -24 dB per octave)
  •        Bass Boost Control 0-18 dB at 40 Hz)
  •        Infrasonic filter (15/25 Hz, 18 dB/octave)
  •        Speaker-level inputs with signal sensing turn-on
  •        Preamp-level inputs and outputs
  •        11-1/16"W x 2-3/8"H x 9-7/8"D
